[Kserve] 2. 설치 및 구축
쿠버네티스 상에서 AI 모델을 서빙할 수 있는 Kserve 플랫폼을 구축해봅시다.
[Kserve] 2. 설치 및 구축
앞선 글
KServe 설치
- KServe를 설치하기 위해서는 Knative, Istio, Cert Manager 등 여러 third-party 구성 요소를 먼저 구축해야 합니다.
- 용기를 가지고 아래 가이드를 차근차근 참고하여 설치해봅시다!
시작하기 전에 필요한 환경
Kserve 공식 문서를 참고하여 Serverless 형태로 구축합니다.이에 따라 다음과 같은 환경이 필요합니다.
(1) 쿠버네티스 클러스터
- Kubernetes 1.28 이상 버전 (최소 요구사항), Minikube 또는 Kind로 구성된 개발용 클러스터
- kubectl 최신 버전 (v1.28 이상 권장)
필자는 Minikube를 활용하여 v1.31.0 K8S, v1.31.1 버전의 Kubectl을 설치하였습니다.
1
2
3
4
5
6
7
8
(base) jmlim@Legion-5:~$ k get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
mlops Ready control-plane 50d v1.31.0 192.168.49.2 <none> Ubuntu 22.04.4 LTS 6.8.0-52-generic docker://27.2.0
mlops-m02 Ready worker 50d v1.31.0 192.168.49.3 <none> Ubuntu 22.04.4 LTS 6.8.0-52-generic docker://27.2.0
(base) jmlim@Legion-5:~$ kubectl version
Client Version: v1.31.1
Kustomize Version: v5.4.2
Server Version: v1.31.0
(2) (선택 사항) GPU 지원
GPU를 활용하고자 할 경우, gpu-operator가 이미 설치되어 있어야 합니다.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
(base) jmlim@Legion-5:~$ k get pods -n gpu-operator
NAME READY STATUS RESTARTS AGE
gpu-feature-discovery-9bwdm 1/1 Running 22 (47h ago) 45d
gpu-feature-discovery-ddjxp 1/1 Running 22 (47h ago) 45d
gpu-operator-55566cdcc9-8fd8s 1/1 Running 30 (24m ago) 40d
gpu-operator-node-feature-discovery-gc-7f546fd4bc-54pb7 1/1 Running 22 (47h ago) 45d
gpu-operator-node-feature-discovery-master-8448c8896c-89sdj 1/1 Running 41 (24m ago) 45d
gpu-operator-node-feature-discovery-worker-sntpd 1/1 Running 71 (47h ago) 45d
gpu-operator-node-feature-discovery-worker-spsqd 1/1 Running 58 (24m ago) 45d
nvidia-container-toolkit-daemonset-fk66k 1/1 Running 22 (47h ago) 45d
nvidia-container-toolkit-daemonset-tgqh2 1/1 Running 22 (47h ago) 45d
nvidia-cuda-validator-dqwpj 0/1 Completed 0 25m
nvidia-cuda-validator-lfvd6 0/1 Completed 0 24m
nvidia-dcgm-exporter-p2w4w 1/1 Running 22 (47h ago) 45d
nvidia-dcgm-exporter-s6r5z 1/1 Running 22 (47h ago) 45d
nvidia-device-plugin-daemonset-g58dc 1/1 Running 50 (47h ago) 45d
nvidia-device-plugin-daemonset-x4w54 1/1 Running 26 (47h ago) 45d
nvidia-operator-validator-h5r9r 1/1 Running 22 (47h ago) 45d
nvidia-operator-validator-kkjcn 1/1 Running 15 (47h ago) 45d
Knative, Istio 설치

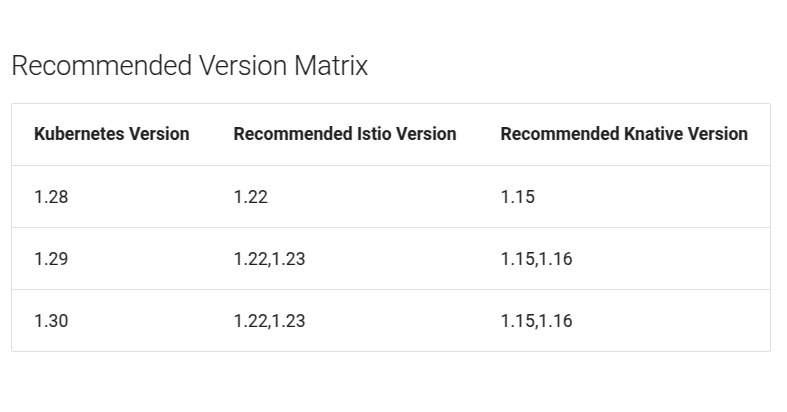

(1) 버전 호환성 확인
(2) Knative 설치
Knative v1.17 Install Serving with YAML 내용을 토대로 진행합니다.
Knative Serving 구성 요소 중 사용자 정의 리소스(serving-crds),핵심 구성요소 (serving-core) manifests가 필요합니다.
Knative v1.17 Knative Serving installation files에서 아래 두 파일을 다운받고 설치합니다.
- serving-crds.yaml
- serving-core.yaml
1
2
(base) jmlim@Legion-5:~/kserve 설치/knative$ k apply -f serving-crds.yaml
(base) jmlim@Legion-5:~/kserve 설치/knative$ k apply -f serving-core.yaml
- knative component들을 확인합니다.
1
2
3
4
5
6
(base) jmlim@Legion-5:~/kserve 설치/knative$ k get pods -n knative-serving
NAME READY STATUS RESTARTS AGE
activator-7c48c6944d-t55t2 1/1 Running 0 21m
autoscaler-775c659bc6-26vbl 1/1 Running 1 (9m45s ago) 21m
controller-7cf4fbd94-4vcnz 1/1 Running 5 (9m36s ago) 21m
webhook-57ccdb4884-25sqp 1/1 Running 3 (9m1s ago) 21m
(3) Istio 설치
Knative v1.17 Install Istio for Knative을 토대로 진행합니다.
- 먼저 Istioctl를 설치합니다. (참고 Install with Istioctl)
1
2
3
4
5
6
7
# istioctl 바이너리 파일 다운로드
# https://istio.io/latest/docs/setup/additional-setup/download-istio-release/
(base) jmlim@Legion-5:$ curl -L https://istio.io/downloadIstio | sh -
(base) jmlim@Legion-5/istio-1.25.0:$ cd istio-1.25.0
# 환경변수 설정
(base) jmlim@Legion-5:$ export PATH=$PWD/bin:$PATH
- Istio를 설치하고 확인합니다.
1
2
3
4
5
6
7
8
# istio 설치
(base) jmlim@Legion-5:$ istioctl install
# istio 설치 확인
(base) jmlim@Legion-5:$ k get pods -n istio-system
NAME READY STATUS RESTARTS AGE
istio-ingressgateway-7f56c6746b-j5xbl 1/1 Running 0 73s
istiod-5dc686f4cf-h2rfj 1/1 Running 0 87s
- Knative Istio controller를 설치합니다.
1
(base) jmlim@Legion-5:~$ k apply -f https://github.com/knative/net-istio/releases/download/knative-v1.17.0/net-istio.yaml
- Istio 외부 접속을 위해 LoadBalancer 타입의 Service를 Nodeport로 변경합니다. (혹은 MetaLB를 통해 LoadBalancer로 활용해도 됩니다.)
- 본 글에서 활용하고 있는 Minikube 클러스터에서 Nodeport 사용 시, Minikbe의 IP를 통해 요청할 수 있습니다.
1
2
3
4
5
6
7
8
9
10
11
12
# Istio Service 타입 변경
(base) jmlim@Legion-5:~$ k patch svc istio-ingressgateway -n istio-system -p '{"spec": {"type": "NodePort"}}'
service/istio-ingressgateway patched
(base) jmlim@Legion-5:~$ k get svc -n istio-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
istio-ingressgateway NodePort 10.101.70.126 <none> 15021:31483/TCP,80:30439/TCP,443:30839/TCP 2d22h
istiod ClusterIP 10.102.2.212 <none> 15010/TCP,15012/TCP,443/TCP,15014/TCP 2d22h
knative-local-gateway ClusterIP 10.98.109.221 <none> 80/TCP,443/TCP 2d22h
# Minikube 클러스터 IP 확인
(base) jmlim@Legion-5:~$ mk -p mlops ip
192.168.49.2
(4) (선택) Knative HPA 설치
- Kubernetes의 기본 HPA 대신 Knative의 HPA를 사용하여 자동 스케일링하기 위해 설치합니다.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# knative-serving hpa 설치
(base) jmlim@Legion-5:~$ k apply -f https://github.com/knative/serving/releases/download/knative-v1.17.0/serving-hpa.yaml
deployment.apps/autoscaler-hpa created
service/autoscaler-hpa created
# 확인
(base) jmlim@Legion-5:~$ k get pods -n knative-serving
NAME READY STATUS RESTARTS AGE
activator-7c48c6944d-t55t2 1/1 Running 2 (62m ago) 2d23h
autoscaler-775c659bc6-26vbl 1/1 Running 3 (62m ago) 2d23h
autoscaler-hpa-998cd99bb-bjxkn 1/1 Running 0 11s
controller-7cf4fbd94-4vcnz 1/1 Running 9 (34m ago) 2d23h
net-istio-controller-5d7c696f76-sdg2p 1/1 Running 3 (62m ago) 2d22h
net-istio-webhook-58bb884dc-jlbvz 1/1 Running 3 (62m ago) 2d22h
webhook-57ccdb4884-25sqp 1/1 Running 6 (62m ago) 2d23h
Cert-Manager 설치
Cert-Manager Installation을 참고하여 진행합니다.
- Kubernetes 환경에서 TLS 인증서를 자동으로 관리하기 위해 Cert Manager 설치합니다.
1
2
3
4
5
6
(base) jmlim@Legion-5:~$ k apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.17.0/cert-manager.yaml
(base) jmlim@Legion-5:~$ k get pods -n cert-manager
NAME READY STATUS RESTARTS AGE
cert-manager-5b85cc56c4-grp7d 1/1 Running 0 43s
cert-manager-cainjector-547db48bc7-2kmvk 1/1 Running 0 43s
cert-manager-webhook-58f7b445c4-jvd27 1/1 Running 0 43s
Kserve v0.14.1 CRD / Controller / ClusterServingRuntime 설치
- 드디어 최종적으로 Kserve를 배포합니다!
- Install KServe - Install using YAML을 참고합니다.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# CRD, Controller 설치
(base) jmlim@Legion-5:~$ k apply --server-side -f https://github.com/kserve/kserve/releases/download/v0.14.1/kserve.yaml
# ClusterServingRuntime 설치
(base) jmlim@Legion-5:~$ k apply --server-side -f https://github.com/kserve/kserve/releases/download/v0.14.1/kserve-cluster-resources.yaml
(base) jmlim@Legion-5:~$ k get all -n kserve
NAME READY STATUS RESTARTS AGE
pod/kserve-controller-manager-5c6ff8c6d4-m778w 2/2 Running 0 3m26s
pod/kserve-localmodel-controller-manager-7df647ffbf-dk82j 1/1 Running 0 3m26s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kserve-controller-manager-metrics-service ClusterIP 10.100.25.208 <none> 8443/TCP 3m26s
service/kserve-controller-manager-service ClusterIP 10.103.244.57 <none> 8443/TCP 3m26s
service/kserve-webhook-server-service ClusterIP 10.109.48.66 <none> 443/TCP 3m26s
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/kserve-localmodelnode-agent 0 0 0 0 0 kserve/localmodel=worker 3m26s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/kserve-controller-manager 1/1 1 1 3m26s
deployment.apps/kserve-localmodel-controller-manager 1/1 1 1 3m26s
NAME DESIRED CURRENT READY AGE
replicaset.apps/kserve-controller-manager-5c6ff8c6d4 1 1 1 3m26s
replicaset.apps/kserve-localmodel-controller-manager-7df647ffbf 1 1 1 3m26s
- Kserve 설치를 확인합니다.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
# 컴포넌트 확인
(base) jmlim@Legion-5:~$ k get all -n kserve
NAME READY STATUS RESTARTS AGE
pod/kserve-controller-manager-5c6ff8c6d4-m778w 2/2 Running 0 3m26s
pod/kserve-localmodel-controller-manager-7df647ffbf-dk82j 1/1 Running 0 3m26s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kserve-controller-manager-metrics-service ClusterIP 10.100.25.208 <none> 8443/TCP 3m26s
service/kserve-controller-manager-service ClusterIP 10.103.244.57 <none> 8443/TCP 3m26s
service/kserve-webhook-server-service ClusterIP 10.109.48.66 <none> 443/TCP 3m26s
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/kserve-localmodelnode-agent 0 0 0 0 0 kserve/localmodel=worker 3m26s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/kserve-controller-manager 1/1 1 1 3m26s
deployment.apps/kserve-localmodel-controller-manager 1/1 1 1 3m26s
NAME DESIRED CURRENT READY AGE
replicaset.apps/kserve-controller-manager-5c6ff8c6d4 1 1 1 3m26s
replicaset.apps/kserve-localmodel-controller-manager-7df647ffbf 1 1 1 3m26s
# CRD(Custom Resource Definitions) 확인
(base) jmlim@Legion-5:~$ k get crd | grep serving.kserve.io
clusterservingruntimes.serving.kserve.io 2025-01-22T10:59:42Z
clusterstoragecontainers.serving.kserve.io 2025-01-22T10:59:42Z
inferencegraphs.serving.kserve.io 2025-01-22T10:59:42Z
inferenceservices.serving.kserve.io 2025-01-22T10:59:42Z
localmodelcaches.serving.kserve.io 2025-01-22T11:13:06Z
localmodelnodegroups.serving.kserve.io 2025-01-22T11:13:06Z
localmodelnodes.serving.kserve.io 2025-01-22T11:13:06Z
servingruntimes.serving.kserve.io 2025-01-22T10:59:44Z
trainedmodels.serving.kserve.io 2025-01-22T10:59:44Z
# ClusterServingRuntimes 확인
(base) jmlim@Legion-5:~$ k get clusterservingruntimes
NAME DISABLED MODELTYPE CONTAINERS AGE
kserve-huggingfaceserver huggingface kserve-container 4m
kserve-lgbserver lightgbm kserve-container 4m
kserve-mlserver sklearn kserve-container 4m
kserve-paddleserver paddle kserve-container 4m
kserve-pmmlserver pmml kserve-container 4m
kserve-sklearnserver sklearn kserve-container 4m
kserve-tensorflow-serving tensorflow kserve-container 4m
kserve-torchserve pytorch kserve-container 4m
kserve-tritonserver tensorrt kserve-container 4m
kserve-xgbserver xgboost kserve-container 4m
정리
이로써 KServe 설치 과정을 성공적으로 완료했습니다. KServe의 핵심 컴포넌트들을 통해 이제 Kubernetes 환경에서 ML 모델을 효율적으로 배포하고 관리할 수 있는 기반이 마련되었습니다. 다음 글에서는 실제 ML 모델을 KServe에 배포하고 추론 요청을 처리하는 방법에 대해 자세히 알아보겠습니다.
